Foot Plantar 3D with color in non/semi/full weight

Foam Impression and Plaster Cast

Minimum CPU: Atom Z8350

Minimum RAM: 4G

Normal Speed Scan: Atom Z8350 (6.9 sec)

High Speed Scan: I5-6200U (4.9 sec)

Software UI or Foot switch to activate scan

Clean 3D mesh, +/- 1.0mm accuracy

Size: 600L X 230W X 69H mm

Weight: 5Kg

Load Capacity: 180Kg (397Lb)

Power adapter: AC 100-240V; DC 12V/3A

Customizable panels design and color

CE/FDA/PSE certification/registration

One-year limited warranty

Win10/11, doesn't support Win7/8

Auto diagnostic for arch type, bunion, and heel angle

Auto tracking blue markers at 1st and 5th met points

Auto tracking blue markers at 3 heel points

Mark landmarks on foot then drag points to match

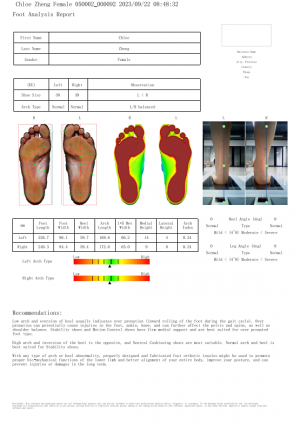

PDF Foot report with manual annotations

User-editable report templates, sell your own brand

User-define UI and icon color

Default English. Translate into your own local language

Shoe size US/UK/EU/CN/JP standards

Export to STL/WRL/OBJ/PLY, PDF report, CSV data files

FTP send order to shoe/insole fabrication

User-define RX form for orthopedic shoe/insole

Developers: CMD/TCP call scanner to receive data-integration into your own CAD software and database

Optional encrypt scanners to lock files

Also support LSR, LSR-DUO scanners
