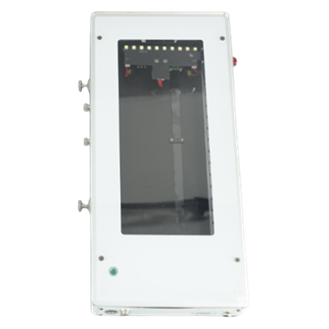

Small and light. Reliable after years of field use worldwide.
Fast true 3D laser scan. Auto landmark, measurement, and analysis.
Custom shoes and orthotic insoles fabrication for foot clinics.
Prefab shoes and orthotic insoles selection for retail stores.
LSR vs USOL
LSR vs USOL
LSR vs USOL
USOL vs LSR: Smaller/Lighter/Faster/Prettier.
USOL Software UI more elegant.
Foot Plantar 3D with color in non/semi/full weight
Foam Impression and Plaster Cast
Minimum CPU: Atom Z8350
Minimum RAM: 4G
Normal Speed Scan: Atom Z8350 (2.9 sec)
High Speed Scan: I5-6200U (1.9 sec)
Software UI or Foot switch to activate scan
Clean 3D mesh, +/- 1.0mm accuracy
Scan Volume: 330L X 140W X 80H mm
Size: 490L X 230W X69H mm
Weight: 4.7Kg
Load Capacity: 180Kg (397Lb)
Power adapter: AC 100-240V; DC 12V/3A
Customizable panels design and color
CE/FDA/PSE certification/registration
One-year limited warranty
Win10/11, doesn't support Win7/8
Auto analysis for arch type, bunion, and heel angle
Auto tracking blue markers at 1st and 5th met points
Auto tracking blue markers at 3 heel points
Mark landmarks on foot then drag points to match
PDF Foot report with manual annotations
User-editable report templates, sell your own brand
User-define UI and icon color
Default English. Translate into your own local language
Shoe size US/UK/EU/CN/JP standards
Export to STL/WRL/OBJ/PLY, PDF report, CSV data files
FTP send order to shoe/insole fabrication
User-define RX form for orthopedic shoe/insole
Developers: CMD/TCP call scanner to receive data-integration into your own CAD software and database
Optional encrypt scanners to lock files
Also support LSR, LSR-DUO scanners
Scanner, Power Adapter, USB Cable (White), Foot Switch, Heel Camera (folding with laser).
USOL Standard + Toe Laser, Side Steps (Pair).
USOL Standard + Toe Laser, Folding Frame (with wheels) and VESA Bracket.
Folding Frame (wheels) and VESA Bracket
Mounting position for supine or prone
Height adjustable 500-1000mm, chair to recliner
Heel Camera records heel position
Heel and Toe laser help to control foot posture
