Fast true 3D laser scan with color texture.
Auto landmark, measurement, and analysis.
Custom shoes and orthotic insoles for foot clinics and retail stores.

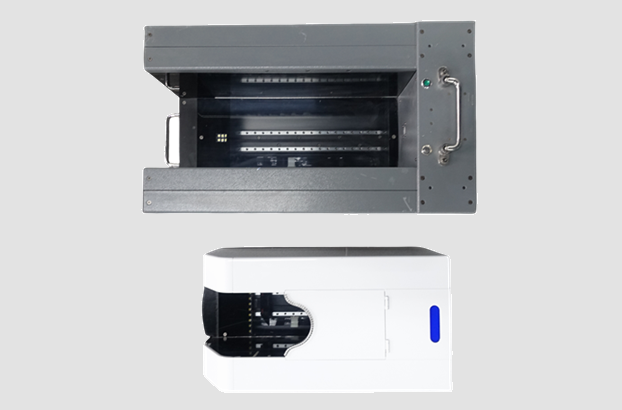

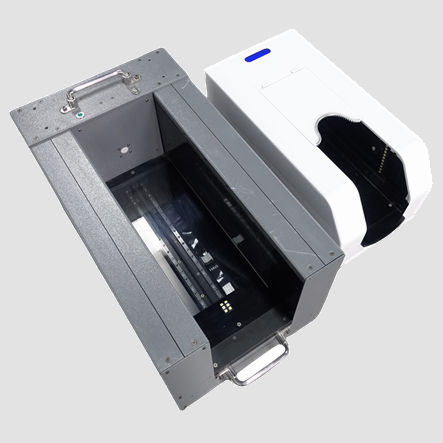

UPOD vs UPOD-S
UPOD vs UPOD-S
UPOD vs UPOD-S

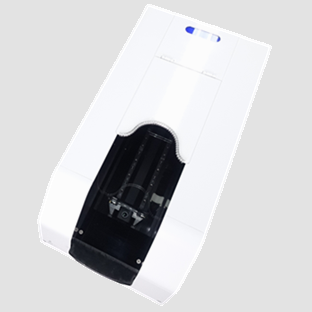

UPOD-S is Smaller/Lighter/Faster/Prettier than UPOD.
UPOD Software UI is elegant, intuitive, yet powerful.
Full-foot 3D with color in non/semi/full-weight
Foam Impression and Plaster Cast
Speed 3.2s one-way for 3D
Low PC requirement, i5-6200U 4G ram minimum
Integrated GPU OK, no need dedicated GPU
Software UI or Foot switch to activate scan
Normal indoor lighting, no dark room
Clean 3D mesh, +/- 1.0mm accuracy
Scan Volume 330L X 130W X 115H mm
Size: 520L X 270W X 220H mm
Weight: 10Kg (22Lb); Easily move around
Load Capacity: 130Kg (290Lb)
Power adapter AC 100-240V; DC 12V/3A
Customizable panels design and color
CE/FDA/PSE certification/registration
One-year limited warranty
Win10 only, doesn’t support Win7/8
Auto 30 Landmark and 43 Measurements
Auto analysis for arch type, hallux, and heel
Mark landmarks on foot then drag points to match
Foot report with manual annotations
Export to STL/WRL, JPG/PNG, PDF report, CSV data files
FTP send order to shoe/insole fabrication
Customize software logo, sell your own brand
Customize UI language to your local language
Customize RX form for custom shoe/insole
Developers: CMD/TCP call scanner to receive data-integration into your own CAD software and database
Encrypt scanners to lock files
Custom software development
WeChat/Facebook integration (to be finished…)
Included: Scanner body, USB2.0 Cable, Power Adapter, Foot Switch, Side standing steps, and software license dongle
User supply: Laptop or desktop PC with monitor/keyboard/mouse. Recommend CPU i5-6200U, 4~8G ram, and 1080P display.
Optional: 24-inch rolling case. Total travel weight 15Kg (33Lb). This is optional because the user can buy this locally.
UPOD-S Pedestal Configuration
Included: Scanner body, USB2.0 Cable, Power Adapter, Foot Switch, Side standing steps, software license dongle and Pedestal
Pedestal has VESA mounting holes (100X100mm) for PC and monitor. Mini-PC to be mounted behind the monitor
Pedestal is disassembled to reduce packing size. Weight is 5KG.
User Supply: Mini-PC and Touch Monitor. Recommend CPU i5-6200U Ram 4~8G or better, and 1080P touch monitor.
Optional: We supply Mini-PC with Touch Monitor. These are optional because the user can buy these locally
